Apple Mac mini M6 Chip 12-core CPU 12-core GPU 16GB 512GB

Apple M6 Performance and 16GB Unified Memory

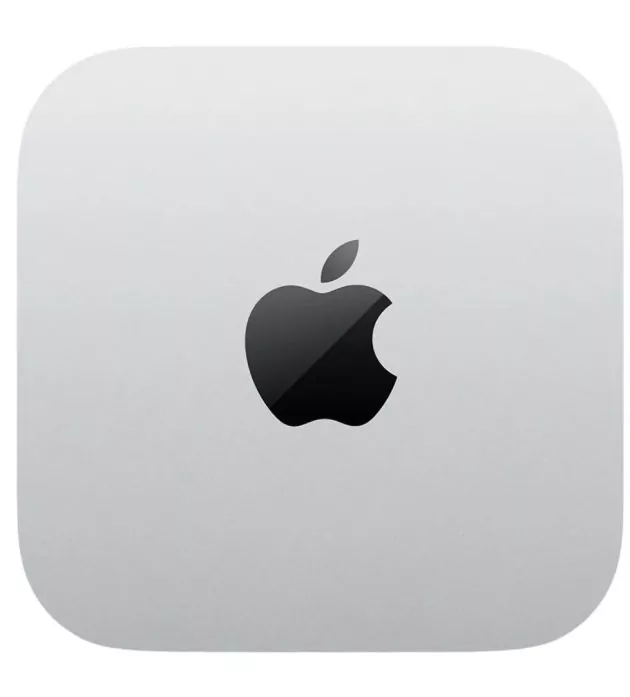

The Apple Mac mini M6 MHQL4 is a compact desktop powered by the Apple M6 chip with a 12-core CPU, 12-core GPU and 16-core Neural Engine. The chip also features Neural Accelerators and hardware-accelerated ray tracing for supported applications and games.

This model has 16GB of unified memory with memory bandwidth of up to 153GB/s. Apple silicon uses a shared memory architecture where the CPU, GPU and Neural Engine access the same memory pool. The 16GB unified memory is integrated into the Mac mini and cannot be upgraded.

The M6 also includes hardware acceleration for H.264, HEVC, ProRes and ProRes RAW, along with AV1 decoding. It is suitable for office applications, programming, browsing, photo editing, video work and other desktop tasks.

512GB SSD with Up to 2x Faster Storage

The Mac mini MHQL4 includes a 512GB SSD for macOS, applications and files. Apple states that the M6 Mac mini has storage performance up to 2x faster than the previous-generation M4 Mac mini.

The internal 512GB SSD is not user-upgradeable. Additional storage can be connected externally through the Mac mini's Thunderbolt 4 and USB-C ports.

Thunderbolt 4, Wi-Fi 7 and Multi-Display Support

The Mac mini has three rear Thunderbolt 4 ports supporting data transfer up to 40Gb/s, along with HDMI and 2.5Gb Ethernet. Two USB-C ports are located on the front, supporting USB 3 speeds up to 10Gb/s, with a 3.5mm headphone jack also provided.

Wireless connectivity includes Wi-Fi 7 and Bluetooth 6. The 2.5Gb Ethernet port supports 100/1000/2500BASE-T networking.

Mac mini M6 supports up to three external displays. It can support up to two displays at 6K 60Hz or 4K 165Hz, together with a third display up to 5K 60Hz through Thunderbolt or 4K 60Hz through HDMI. It can also support configurations using an 8K 60Hz, 5K 120Hz or 4K 240Hz display.

Compact Mac Desktop

Measuring just 12.7 x 12.7 x 5 cm and weighing approximately 0.67 kg, the Mac mini takes up very little desk space and can be paired with an external monitor, keyboard and mouse. The compact design also makes it easy to use as a permanent desktop workstation or media and home computer.

Who Is It For?

The Apple Mac mini M6 is suited to users who want a compact macOS desktop for office work, programming, browsing, photo editing, video editing, content creation and multi-monitor setups. It is especially suitable for users who already have an external display and peripherals.

Key Specifications

Model: Apple Mac mini M6

MPN: MHQL4

Chip: Apple M6

CPU: 12-core CPU

GPU: 12-core GPU

Neural Engine: 16-core Neural Engine

Memory: 16GB unified memory

Memory Bandwidth: Up to 153GB/s

Memory Upgrade: Not upgradeable

Storage: 512GB SSD

Storage Upgrade: Internal SSD not upgradeable

Storage Performance: Up to 2x faster than previous-generation M4 Mac mini

Display Support: Up to three external displays

Front Ports: 2 x USB-C, 3.5mm headphone jack

Rear Ports: 3 x Thunderbolt 4, HDMI, 2.5Gb Ethernet

Thunderbolt Speed: Up to 40Gb/s

Wireless: Wi-Fi 7, Bluetooth 6

Color: Silver

Operating System: macOS

Dimensions: 12.7 x 12.7 x 5 cm

Weight: 0.67 kg

Final Overview

The Apple Mac mini M6 MHQL4 has a 12-core CPU, 12-core GPU, 16GB unified memory with 153GB/s bandwidth and a 512GB SSD with storage performance up to 2x faster than the previous M4 generation. Its 0.67 kg enclosure includes Thunderbolt 4, HDMI, 2.5Gb Ethernet, Wi-Fi 7 and support for up to three external displays. The memory and internal SSD are not upgradeable, while external storage and other peripherals can be added through its high-speed ports.
