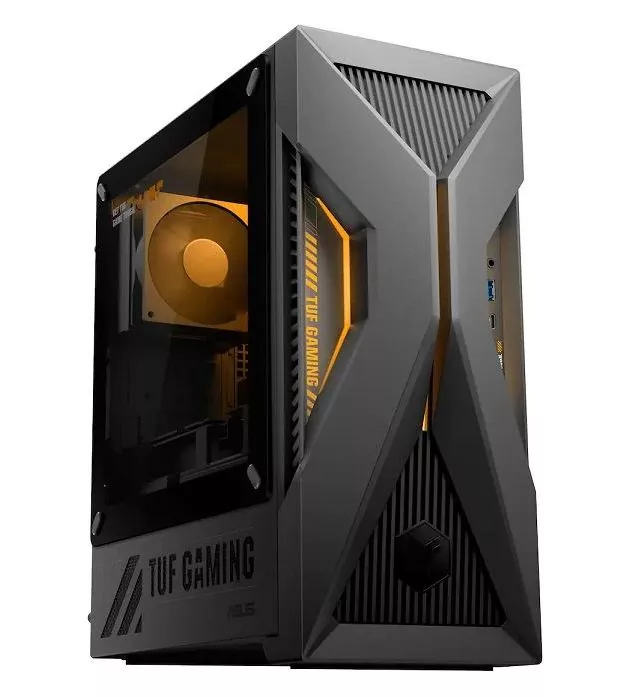

Asus TUF T500 Gaming Desktop - Core i7 13620H, 32GB RAM, RTX 5060 Ti

Asus TUF T500 Gaming Desktop – Elite Power for Gamers and Creators

The Asus TUF T500 Gaming Desktop delivers extreme gaming performance, reliability, and upgrade potential for players who demand more from their systems. Driven by an Intel Core i7-13620H processor, NVIDIA GeForce RTX 5060 Ti GPU, and 32 GB DDR5 memory, it’s engineered for smooth gameplay, content creation, and heavy multitasking.

Model and Build

Model name: ASUS TUF Gaming T500 (T500MV-13620H476W configuration)

Color: Solar Eclipse Gray

Chassis type: Compact tower (15.55 × 29.64 × 34.70 cm)

Weight: around 6 kg (about 13 lbs)

Build quality: Military-grade durability (MIL-STD-810H tested)

Power supply: 500 W 80+ Platinum (peak 1000 W)

Operating System

Windows 11 Home preinstalled (upgradeable to Windows 11 Pro)

Processor (CPU)

Intel Core i7-13620H

– 10 cores (6 Performance + 4 Efficient)

– 16 threads

– Base clock 2.4 GHz, turbo boost up to 4.9 GHz

– 24 MB Smart Cache

Graphics (GPU)

NVIDIA GeForce RTX 5060 Ti

– 8 GB GDDR7 VRAM

– Ports: up to 3 × DisplayPort 1.4 and 1 × HDMI 2.1

– Supports DLSS 3.5, ray tracing, and NVIDIA Reflex technologies

Memory (RAM)

– 2 × SO-DIMM slots for DDR5 memory

– Up to 64 GB supported

– Ships with 32 GB DDR5

Storage and Expansion

– M.2 2280 PCIe 4.0 NVMe SSD 1 TB

– 2 × SATA 6.0 Gb/s ports for HDD/SSD expansion

– 2 × M.2 slots for storage

– 1 × M.2 slot for Wi-Fi module

– 1 × PCIe 4.0 x16 slot (operates at x8 for GPU)

Front I/O Ports

– 2 × USB 3.2 Gen 1 Type-A

– 1 × USB 3.2 Gen 1 Type-C

– 1 × 3.5 mm combo audio jack (headphone/microphone)

Rear I/O Ports

– 1 × RJ-45 Gigabit Ethernet port

– 1 × HDMI 1.4 port

– 1 × DisplayPort 1.4

– 4 × USB 2.0 Type-A ports

– 3 × 3.5 mm audio jacks (line-in, line-out, mic) with 7.1-channel support

– Kensington lock slot

Networking and Wireless

– Wired LAN: 1 Gb Ethernet (Intel controller)

– Wireless: Wi-Fi 6 (802.11ax), dual-band 2×2

– Bluetooth 5.4

Cooling System

– Air-cooled desktop design optimized for compact tower layout

– TUF-grade thermal management with high-efficiency fans

Audio

– Integrated 7.1-channel HD audio

– Realtek codec with noise cancellation features

Security and Compliance

– Discrete TPM 2.0 support

– HDD user password protection

– Kensington security slot

– RoHS and REACH compliant

Summary - TUF Gaming T500 with RTX 5060 Ti

CPU: Intel Core i7-13620H

GPU: NVIDIA GeForce RTX 5060 Ti 8 GB GDDR7

RAM: 32 GB DDR5 (Expandable to 64 GB)

Storage: 1 TB NVMe SSD (Expandable)

PSU: 500 W 80+ Platinum

OS: Windows 11 Home

Connectivity: Wi-Fi 6, Bluetooth 5.4, Gigabit LAN

Ports: USB 3.2 Gen 1 and 2, HDMI, DisplayPort, audio combo
