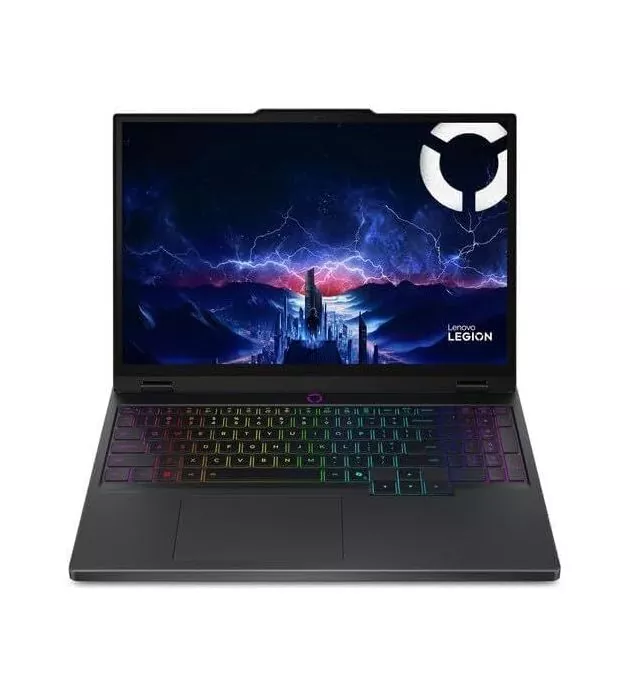

Lenovo Legion Pro 5 16" Gaming Laptop - Ryzen 9, RTX 5070, 32GB, 165Hz

Lenovo Legion Pro 5 - Precision Gaming Power for Pros

The Lenovo Legion Pro 5 is engineered to dominate the gaming world with next-generation power and cooling efficiency. Powered by the AMD Ryzen 9 9955HX processor, NVIDIA GeForce RTX 5070 graphics, and 32GB of DDR5 memory, it delivers unmatched speed, multitasking, and visual performance for gamers, creators, and professionals.

General Information

Model Name: Lenovo Legion Pro 5 16AFR10

Part Number: 83F2002BUS

Series: Legion Pro 5 (2025 model year)

Color: Eclipse Black

Processor (CPU)

Model: AMD Ryzen 9 9955HX

Cores / Threads: 16 cores / 32 threads

Base Clock: ~2.5 GHz

Boost Clock: Up to ~5.4 GHz

Cache: 64 MB L3

TDP: ~65 W (up to 120 W in boost)

Graphics (GPU)

GPU Model: NVIDIA GeForce RTX 5070 Laptop GPU

VRAM: 8 GB GDDR7

TGP: Up to 140 W (depending on power mode)

Alternative Configurations: Some regions list RTX 5060 8 GB GDDR7

Display

Size: 16 inches

Panel Type: OLED

Resolution: 2560 × 1600 (QHD+)

Aspect Ratio: 16:10

Refresh Rate: 165 Hz

Brightness: 500 nits (typical), up to 1100 nits peak (HDR)

Color Gamut: 100% DCI-P3

Certifications: HDR True Black 1000

Sync: NVIDIA G-SYNC and AMD FreeSync

Memory (RAM)

Capacity: 32 GB (2 × 16 GB)

Type: DDR5-5600 MHz

Configuration: Dual-channel

Maximum Supported: 32 GB

Storage

Drive: 1 TB PCIe 4.0 NVMe M.2 SSD

Expansion: 2 × M.2 slots (supports up to 2 TB total depending on configuration)

Battery

Capacity: 80 Wh lithium-ion battery

Charging: Supports 230 W or 300 W fast charging adapter (depending on configuration)

Ports & Connectivity

USB-A:

2 × USB 3.2 Gen 1 (5 Gbps)

1 × USB 3.2 Gen 2 (10 Gbps, Always On)

USB-C:

1 × USB 3.2 Gen 2 (10 Gbps) with DisplayPort 2.1

1 × USB 3.2 Gen 2 (10 Gbps) with Power Delivery (65–100 W) + DisplayPort 2.1

HDMI: 1 × HDMI 2.1 (8K @ 60 Hz / 4K @ 120 Hz)

Audio Jack: 1 × 3.5 mm combo (headphone / mic)

Ethernet: 1 × RJ-45 Gigabit Ethernet

Power Input: Rear port

Networking

Wi-Fi: Wi-Fi 7 (802.11be) 2×2 MIMO

Bluetooth: Version 5.4

Audio & Camera

Speakers: 2 × 2 W stereo speakers tuned by Harman, Nahimic Audio

Webcam: 5 MP Full HD camera with privacy shutter

Microphones: Dual array

Build & Dimensions

Chassis Material: Aluminium and polycarbonate (hybrid construction)

Dimensions: 364.38 × 268.06 × 21.7–25.9 mm

Weight: Approx. 2.3 kg (5.1 lbs)

Operating System

OS: Windows 11 Home (64-bit)
