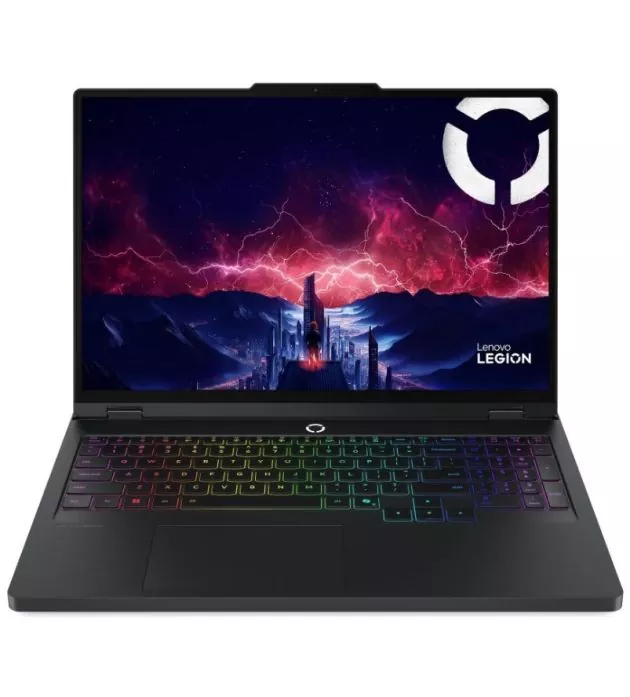

Lenovo Legion Pro 5 - AMD Ryzen 9 8945HX, 16GB RAM, RTX 5060, 240Hz

Lenovo Legion Pro 5 – High-Performance Gaming Laptop Built to Win

The Lenovo Legion Pro 5 is a high-end gaming laptop designed for serious gamers and power users who demand maximum performance, fast response times, and advanced cooling. Powered by the AMD Ryzen 9 8945HX and NVIDIA RTX 5060, it delivers exceptional performance for modern AAA games, competitive esports, and demanding creative workloads.

General

Model: Lenovo Legion Pro 5 16ADR10

Part Number: 83LT000EUS

Category: High-performance gaming laptop

Processor (CPU)

CPU: AMD Ryzen™ 9 8945HX

Architecture: Zen 4

Cores / Threads: 16 cores / 32 threads

Base Clock: 2.5 GHz

Max Boost Clock: Up to 5.4 GHz

Cache: 16 MB L2 + 64 MB L3

Graphics (GPU)

Discrete GPU: NVIDIA® GeForce RTX™ 5060 Laptop GPU

Video Memory: 8 GB GDDR7

Max Graphics Power (TGP): ~115 W

AI Performance: ~572 AI TOPS

Integrated GPU: AMD Radeon Graphics (integrated in CPU)

Memory (RAM)

Installed RAM: 16 GB DDR5-5200

Configuration: 1 × 16 GB

Slots: 2 × SO-DIMM

Maximum Supported: Up to 32 GB

Storage

Installed Storage: 1 TB SSD

Type: M.2 2242 PCIe 4.0 ×4 NVMe

Expansion: Second M.2 slot available for another SSD

Display

Size: 16 inches

Panel Type: IPS

Resolution: WQXGA (2560 × 1600)

Aspect Ratio: 16:10

Refresh Rate: 240 Hz

Brightness: ~500 nits

Color Gamut: 100% DCI-P3

HDR: DisplayHDR 400, Dolby Vision

Adaptive Sync: NVIDIA G-SYNC, AMD FreeSync Premium

Audio

Speakers: Stereo, 2 × 2 W

Audio Technology: Nahimic audio tuning

Ports & Connectivity

Ports

2 × USB-A (USB 3.2 Gen 1, 5 Gbps)

1 × USB-A (USB 3.2 Gen 2, 10 Gbps, Always-On)

2 × USB-C (USB 3.2 Gen 2, DisplayPort 1.4, Power Delivery)

1 × HDMI 2.1

1 × RJ-45 Ethernet

1 × 3.5 mm headphone/microphone combo

1 × Power connector

Wireless

Wi-Fi: Wi-Fi 7 (802.11be)

Bluetooth: Bluetooth 5.4

Keyboard & Input

Keyboard: Full-size keyboard with numeric keypad

Backlight: 24-zone RGB

Touchpad: Precision multi-touch touchpad

Camera & Security

Webcam: HD webcam

Security: Firmware TPM 2.0

Privacy: Webcam privacy shutter (region-dependent)

Battery & Power

Battery Capacity: 80 Wh

Power Adapter: ~245 W

Charging Support: USB-C Power Delivery (65–100 W)

Physical Characteristics

Dimensions: Approx. 364 × 268 × 26 mm

Weight: Approx. 2.3–2.4 kg

Color: Eclipse Black

Software

Operating System: Windows 11 Home
