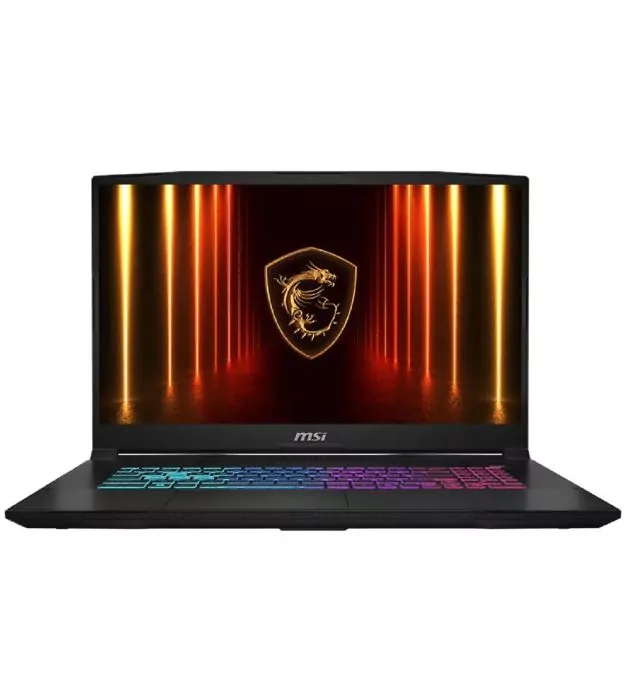

MSI Katana 17 HX Gaming Laptop Core i7-14650HX 16GB RTX 5060

MSI Katana 17 HX Gaming Laptop Overview

The MSI Katana 17 HX B14WFK-400XPL is a large-screen gaming laptop built around the Intel Core i7-14650HX processor and NVIDIA GeForce RTX 5060 Laptop GPU. It combines 16GB of DDR5 memory and a 512GB PCIe Gen4 NVMe SSD with a 17.3-inch Full HD display running at 144Hz.

This configuration is supplied with FreeDOS, giving you the option to install the operating system of your choice. The laptop also provides two DDR5 memory slots, with support for up to 96GB of RAM.

Core i7-14650HX for Gaming and Heavy Workloads

The Intel Core i7-14650HX has 16 cores consisting of 8 Performance-cores and 8 Efficient-cores, with 24 threads and up to 5.2GHz maximum turbo frequency. It also includes 30MB of Intel Smart Cache.

The HX-series processor is suited to gaming as well as workloads that benefit from a high number of CPU cores, including software development, content creation, rendering and multitasking.

RTX 5060 Laptop GPU with 8GB GDDR7

The dedicated NVIDIA GeForce RTX 5060 Laptop GPU provides 8GB of GDDR7 video memory. MSI specifies up to 2497MHz boost clock and up to 115W maximum graphics power with Dynamic Boost for this configuration.

The combination of the RTX 5060 and Core i7-14650HX gives the Katana 17 HX the hardware needed for modern PC gaming, while the 8GB graphics memory provides room for higher-resolution textures and graphics settings in supported games.

17.3-inch 144Hz FHD Gaming Display

The 17.3-inch display uses a 1920 x 1080 Full HD resolution and a 144Hz refresh rate. Its IPS-Level panel and matte finish provide a practical setup for gaming and everyday use without the reflections associated with glossy screens.

The 144Hz refresh rate allows supported games to display more frames per second than a standard 60Hz panel, making fast movement and camera changes appear smoother.

16GB DDR5 Memory with 96GB Maximum Capacity

This model comes with 16GB of DDR5-5200 memory installed as one 16GB module. MSI provides two memory slots and specifies support for up to 96GB of DDR5 memory.

The second slot also makes future memory expansion straightforward if you need more RAM for demanding applications, heavier multitasking or newer games.

512GB PCIe Gen4 NVMe SSD

The installed storage is a 512GB NVMe SSD using PCIe Gen4 x4. MSI lists one M.2 SSD slot for this model, so the existing drive can be replaced with a larger compatible PCIe Gen4 NVMe SSD when additional storage capacity is required.

Gaming Keyboard and Controls

The Katana 17 HX includes a full-size keyboard with a numeric keypad and 4-zone RGB backlighting. The keyboard also includes a Copilot key, while the layout provides dedicated controls suitable for gaming and everyday desktop-style use.

Connectivity

For wired and peripheral connections, the laptop has three USB 3.2 Gen 2 Type-A ports and one USB 3.2 Gen 2 Type-C port. The Type-C connection supports DisplayPort and Power Delivery 3.0.

Video output is provided through HDMI 2.1, supporting up to 8K at 60Hz or 4K at 120Hz according to MSI. A Gigabit Ethernet port is also included for wired networking.

Wireless, Audio and Camera

Wireless connectivity is handled by Intel Wi-Fi 6E AX211 with Bluetooth 5.3. The laptop also includes a 720p HD webcam capable of 30fps and two 2W speakers.

MSI includes Nahimic 3 audio enhancement and Hi-Res Audio support, while the 3.5mm combo jack handles both headphone and microphone connections.

Battery, Power and Size

The MSI Katana 17 HX uses a 4-cell 75Wh battery and comes with a 240W power adapter. MSI does not specify an official maximum battery-runtime figure for this exact B14WFK-400XPL configuration, so battery life will depend heavily on workload, screen refresh rate and power settings.

The laptop measures 398 x 275.6 x 27.8 mm and weighs approximately 2.7 kg with the battery installed. The chassis is finished in black.

Upgrade Options

The 16GB factory memory is installed in one of the two available DDR5 slots, leaving the system suitable for a future RAM upgrade. MSI specifies support for up to 96GB of DDR5-5600 memory, depending on the memory configuration.

For storage, there is one M.2 PCIe Gen4 NVMe slot. The installed 512GB SSD can therefore be replaced with a higher-capacity compatible drive when more storage is needed.

Who Is the MSI Katana 17 HX For?

The Katana 17 HX is aimed at users who want a large 17.3-inch gaming laptop with a high-performance HX processor and dedicated RTX graphics. The 144Hz display is suited to gaming, while the Core i7-14650HX and expandable memory also make the laptop useful for demanding productivity and creative applications.

Its 2.7 kg weight and large chassis make it more suitable as a desktop replacement or transportable gaming system than as an everyday lightweight laptop.

MSI Katana 17 HX B14WFK-400XPL Specifications

Processor

• Intel Core i7-14650HX
• 16 cores: 8 Performance-cores + 8 Efficient-cores
• 24 threads
• Up to 5.2GHz maximum turbo frequency
• 30MB Intel Smart Cache

Graphics

• NVIDIA GeForce RTX 5060 Laptop GPU
• 8GB GDDR7 VRAM
• Up to 2497MHz boost clock
• Up to 115W maximum graphics power with Dynamic Boost

Display

• 17.3-inch FHD display
• 1920 x 1080 resolution
• 144Hz refresh rate
• IPS-Level panel
• Matte finish

Memory

• 16GB DDR5-5200
• 1 x 16GB module
• 2 DDR5 memory slots
• Maximum supported RAM: 96GB

Storage

• 512GB NVMe SSD
• PCIe Gen4 x4
• 1 x M.2 PCIe Gen4 SSD slot

Keyboard and Camera

• 4-zone RGB backlit keyboard
• Numeric keypad
• Copilot key
• 720p HD webcam, up to 30fps

Ports

• 3 x USB 3.2 Gen 2 Type-A
• 1 x USB 3.2 Gen 2 Type-C with DisplayPort and Power Delivery 3.0
• 1 x HDMI 2.1
• 1 x Gigabit Ethernet
• 1 x 3.5mm audio combo jack

Wireless and Audio

• Intel Wi-Fi 6E AX211
• Bluetooth 5.3
• 2 x 2W speakers
• Nahimic 3 audio enhancement
• Hi-Res Audio ready

Battery and Power

• 4-cell battery
• 75Wh capacity
• 240W power adapter
• Official battery runtime not specified by MSI for this exact configuration

Physical Specifications

• Color: Black
• Weight: 2.7 kg
• Dimensions: 398 x 275.6 x 27.8 mm

Operating System

• FreeDOS

Final Overview

The MSI Katana 17 HX B14WFK-400XPL combines the Core i7-14650HX with an RTX 5060 8GB Laptop GPU and a 17.3-inch 144Hz Full HD display. With 16GB DDR5 memory, a 512GB PCIe Gen4 SSD, two RAM slots and support for up to 96GB, it also leaves room for future upgrades.
