HP OMEN MAX 16t-ah000 Gaming Laptop Ultra 7 255HX RTX 5080 16GB

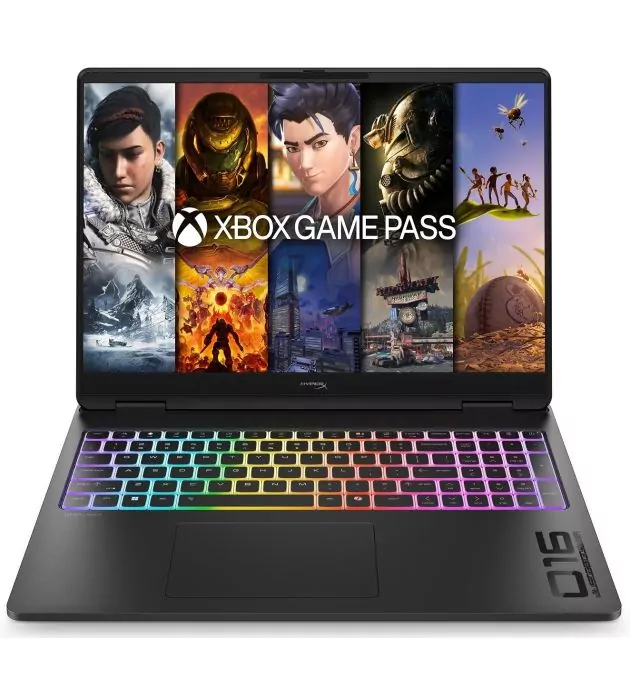

HP OMEN MAX 16T-AH000 Gaming Laptop

The HP OMEN MAX 16T-AH000 is built around an Intel Core Ultra 7 255HX processor and NVIDIA GeForce RTX 5080 Laptop GPU with 16GB of GDDR7 memory. It comes with 16GB DDR5 RAM, a 512GB SSD, a 16-inch 2560 x 1600 display and Windows 11 Home.

RTX 5080 with 16GB GDDR7

The GeForce RTX 5080 Laptop GPU gives the OMEN MAX 16 16GB of dedicated GDDR7 graphics memory. It supports NVIDIA DLSS, ray tracing and other GPU features used by current PC games and graphics applications.

Intel Core Ultra 7 255HX

The Core Ultra 7 255HX has 20 cores and 20 threads, with up to 5.2GHz Turbo Boost and 30MB of L3 cache. It also includes Intel AI Boost for supported AI workloads.

2560 x 1600 on a 16-inch Panel

The laptop has a 16-inch 16:10 display with a 2560 x 1600 resolution. 240Hz

Memory Can Be Expanded

The installed 16GB DDR5 memory is not the end of the upgrade path. HP provides two accessible SODIMM slots and supports up to 64GB of DDR5 memory, so the RAM can be replaced with larger modules later.

Storage

The laptop includes a 512GB PCIe NVMe M.2 SSD. HP's OMEN MAX 16 documentation lists two M.2 SSD slots, giving you the option to add another compatible SSD or replace the existing drive when more storage is needed.

OMEN MAX Cooling

The OMEN MAX 16 uses HP's OMEN Tempest Cooling Pro system. The laptop also has Unleashed Mode through OMEN Gaming Hub, allowing users to adjust supported performance settings.

Gaming Features

The RTX 5080 works with NVIDIA Advanced Optimus and G-SYNC support on compatible internal and external displays. OMEN Gaming Hub provides additional controls for supported performance, system and lighting settings.

Connectivity

The OMEN MAX 16 provides USB-C and USB-A ports, HDMI for an external display, wired Ethernet and a headphone/microphone connection. Wireless connectivity is provided through Wi-Fi and Bluetooth.

Size and Weight

The laptop weighs approximately 2.68 kg. Its 16-inch screen keeps the chassis smaller than a typical 17-inch gaming laptop while leaving room for the RTX 5080 and the cooling hardware required by the system.

Who Is It For?

This OMEN MAX 16 is aimed at users who want an RTX 5080 laptop with a high-resolution 16-inch display and an Intel Core Ultra 7 255HX processor. It is suitable for PC gaming as well as 3D work, rendering, video applications and other software that can use a dedicated high-end GPU.

Upgrade Options

The 16GB DDR5 RAM can be upgraded because the laptop has two accessible SODIMM slots and supports up to 64GB. Storage can also be expanded through the second M.2 SSD slot, so the supplied 512GB SSD does not have to be the final storage setup.

Full Specifications

Processor

Intel Core Ultra 7 255HX, 20 cores, 20 threads, up to 5.2GHz, 30MB L3 cache.

Graphics

NVIDIA GeForce RTX 5080 Laptop GPU with 16GB GDDR7 dedicated graphics memory.

Memory

16GB DDR5. Two SODIMM slots, expandable up to 64GB.

Storage

512GB PCIe NVMe M.2 SSD. Two M.2 SSD slots are supported.

Display

16.0-inch display with 2560 x 1600 resolution and 16:10 aspect ratio.

Keyboard

Backlit gaming keyboard with RGB lighting.

Wireless

Wi-Fi 7 and Bluetooth 5.4.

Operating System

Windows 11 Home.

Color

Black.

Weight

Approximately 2.68 kg.

Warranty

1 Year Warranty.

Model and MPN

HP OMEN MAX 16T-AH000, MPN D1JY2U8R#ABA.

Final Overview

The HP OMEN MAX 16T-AH000 combines the Core Ultra 7 255HX with an RTX 5080 16GB, 16GB DDR5 memory and a 512GB SSD. The 16-inch 2560 x 1600 screen gives the laptop a higher resolution than standard Full HD models, while the two RAM slots and two M.2 storage slots leave room for upgrades. At approximately 2.68 kg, it is built as a full-size gaming laptop rather than a lightweight portable model.
