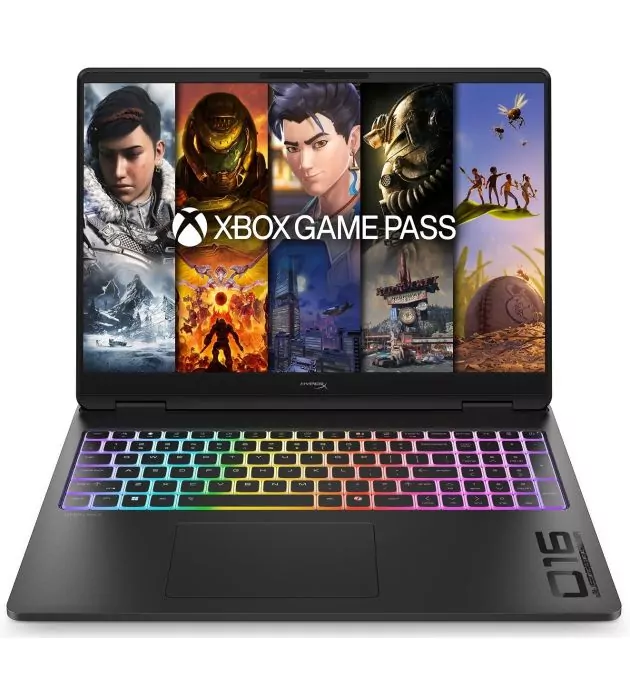

HP OMEN MAX 16t-ah000 Gaming Laptop Core Ultra 9 275HX RTX 5080

HP OMEN MAX 16 Gaming Laptop

The HP OMEN MAX 16T-AH000 combines an Intel Core Ultra 9 275HX processor with NVIDIA GeForce RTX 5080 Laptop graphics, 16GB DDR5 memory and a 1TB NVMe SSD. This configuration has a 16-inch 2560 x 1600 display, Windows 11 Home and a Shadow Black finish.

Core Ultra 9 275HX

The Intel Core Ultra 9 275HX has 24 cores and 24 threads, consisting of 8 performance cores and 16 efficient cores. It reaches up to 5.4GHz with Intel Turbo Boost and has 36MB of L3 cache. The processor also includes Intel AI Boost with 13 NPU TOPS.

GeForce RTX 5080 Laptop GPU

The NVIDIA GeForce RTX 5080 Laptop GPU has 16GB of dedicated GDDR7 memory. The OMEN MAX 16 supports NVIDIA Advanced Optimus and G-SYNC, with the RTX 5080 providing the dedicated graphics for games and GPU-accelerated applications.

2560 x 1600 Display

The 16-inch display uses a 2560 x 1600 resolution and 16:10 aspect ratio. HP specifies a 60-240Hz variable refresh rate, 3ms response time, 500 nits brightness and 100% sRGB coverage for this panel configuration. It also has an anti-glare finish and low-blue-light support.

16GB DDR5 Memory

The laptop comes with 16GB of DDR5 memory. HP's OMEN MAX 16 specifications list two accessible SODIMM slots, with configurations available up to 64GB. The memory is upgradeable.

1TB NVMe SSD

The 1TB SSD uses an M.2 PCIe NVMe interface. The OMEN MAX 16 platform supports M.2 storage,

OMEN Cooling and Controls

The OMEN MAX 16 uses HP's cooling system with dual fans and supports manual performance controls through OMEN Gaming Hub. The laptop also supports manual graphics switching and NVIDIA Advanced Optimus.

Keyboard and Audio

The laptop has a full-size keyboard with per-key RGB lighting and a numeric keypad. Audio is provided through stereo speakers tuned by HyperX, with DTS:X Ultra support.

Ports and Ethernet

The OMEN MAX 16 includes two Thunderbolt 4 USB-C ports, two USB 3.2 Gen 2 Type-A ports, HDMI 2.1, RJ-45 Ethernet and a headphone/microphone combo jack. The RTX 5080 configuration uses a 330W AC power adapter

Wireless Connectivity

Wireless connectivity is provided through Wi-Fi and Bluetooth. The RJ-45 port provides a wired network connection when required.

FHD IR Camera

The OMEN MAX 16 includes a 1080p FHD IR camera with Windows Hello support and a physical privacy shutter.

Battery and Size

The laptop uses an 83Wh six-cell lithium-ion polymer battery. Its dimensions are approximately 35.65 x 26.9 cm, with a height ranging from 2.29 to 2.48 cm. The 5080 configuration weighs approximately 2.68 kg.

Windows 11 Home

Windows 11 Home is included with this configuration, so the laptop is ready to use after initial setup.

Upgrade Options

The 16GB DDR5 memory can be upgraded through the two accessible SODIMM slots. The installed 1TB NVMe SSD can also be replaced with a larger compatible drive.

Full Specifications

Processor

Intel Core Ultra 9 275HX, 24 cores, 24 threads, up to 5.4GHz, 36MB L3 cache.

NPU

Intel AI Boost, up to 13 NPU TOPS.

Graphics

NVIDIA GeForce RTX 5080 Laptop GPU with 16GB GDDR7 dedicated memory.

Memory

16GB DDR5 memory, 2 accessible SODIMM slots, expandable up to 64GB.

Storage

1TB PCIe NVMe M.2 SSD.

Display

16-inch WQXGA display, 2560 x 1600 resolution, 16:10 aspect ratio, 60-240Hz variable refresh rate, 3ms response time, 500 nits and 100% sRGB.

Camera

FHD 1080p IR camera with privacy shutter.

Keyboard

Full-size keyboard with per-key RGB backlighting and numeric keypad.

Audio

Dual stereo speakers tuned by HyperX with DTS:X Ultra.

Wireless

Wi-Fi and Bluetooth connectivity.

Network

RJ-45 Ethernet.

Ports

2 x Thunderbolt 4 USB-C, 2 x USB 3.2 Gen 2 Type-A, HDMI 2.1, RJ-45 Ethernet and headphone/microphone combo jack.

Battery

83Wh 6-cell lithium-ion polymer battery.

Power Adapter

330W AC power adapter.

Operating System

Windows 11 Home.

Colour

Shadow Black.

Weight

Approximately 2.68 kg for the RTX 5080 configuration. HP lists the OMEN MAX 16 series starting at 2.5 kg for basic configuration.

Warranty

1 Year Warranty.

Model and MPN

HP OMEN MAX 16T-AH000, MPN D0NE4U8R#ABA.

Final Overview

The HP OMEN MAX 16T-AH000 pairs the Core Ultra 9 275HX with an RTX 5080 16GB, 16GB DDR5 memory and a 1TB NVMe SSD. Its 16-inch 2560 x 1600 display runs at up to 240Hz, while the full-size per-key RGB keyboard, 83Wh battery, Thunderbolt 4 connectivity, 330W adapter and 2.68 kg chassis complete the configuration. The RAM and storage can be upgraded, and Windows 11 Home is included.
