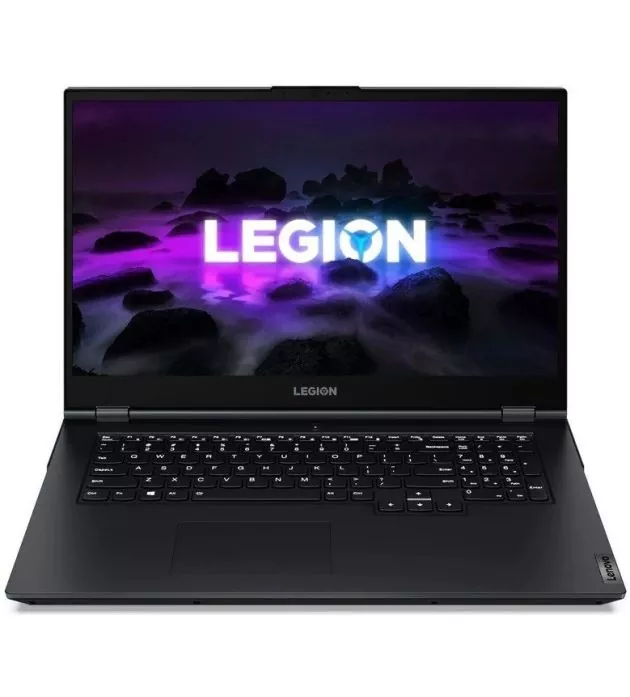

Lenovo Legion 5 17ARH05, AMD Ryzen 7 4800H, 16GB RAM, 512 GB, RTX 2060

Immersive 17.3-Inch Full HD Display for Serious Gaming

The Lenovo Legion 5 17ARH05H is built around a spacious 17.3-inch Full HD IPS display, delivering sharp visuals at 1920×1080 resolution. With anti-glare coating, ~300 nits of brightness, and around 72% NTSC color coverage, it offers clear and vibrant image quality. Dolby Vision support enhances contrast and color depth for a more immersive experience, ideal for gaming and media.

High-Performance AMD Ryzen 7 Processor for Multi-Core Tasks

Powered by the AMD Ryzen 7 4800H, this laptop brings 8 cores and 16 threads to handle gaming, streaming, and heavy multitasking with ease. Clock speeds reach up to 4.2 GHz, while the 8 MB L3 cache keeps applications responsive and fast under load.

Dedicated NVIDIA GeForce RTX 2060 Graphics for Smooth Gameplay

Equipped with an NVIDIA GeForce RTX 2060 GPU and 6 GB of GDDR6 memory, the Legion 5 delivers reliable performance in modern titles. With a ~90 W TGP, it balances efficiency and power, supporting ray tracing and DLSS for visually enhanced gameplay on the go.

16 GB Dual-Channel RAM and Fast NVMe SSD Storage

This model includes 16 GB of dual-channel DDR4-3200 memory for seamless multitasking and system stability. A 512 GB NVMe SSD ensures fast boot times, quick load speeds, and enough space for games and applications.

Long-Lasting 80 Wh Battery with Fast Charging Support

An 80 Wh battery powers the Legion 5, offering up to around 6 hours of use. Fast charging technology brings the battery to roughly 50% in just 30 minutes, making it practical for mobile sessions between plug-ins.

Durable Design with Full-Sized Keyboard and Premium Feel

Housed in a Phantom Black ABS chassis, the design is both sturdy and sleek. It weighs just under 3 kg and features a full-size keyboard with white backlighting and a numeric pad. A privacy-shutter HD webcam and dual mics round out the user-friendly hardware.

Comprehensive Connectivity and Next-Gen Wireless Standards

Connectivity includes multiple USB 3.2 Gen 1 ports, USB-C with DisplayPort support, HDMI 2.0, an SD card reader, Ethernet, and a combo audio jack. Depending on region, models include either Wi-Fi 6 or Wi-Fi 5 with Bluetooth 5.0 for fast, stable wireless access.

Enhanced Audio and Security Features for a Premium Experience

Stereo speakers tuned by Harman Kardon with Dolby Atmos provide detailed, immersive sound. Security is supported by a TPM 2.0 chip and Kensington lock slot, giving peace of mind for both home and travel use.

Specifications

Display

17.3″ Full HD (1920×1080) IPS, anti‑glare

Brightness: ~300 cd/m², ~72% NTSC color gamut

Refresh rate: 60 Hz or 144 Hz with Dolby Vision™ support (depending on config)

Processor (CPU)

AMD Ryzen 7 4800H (Zen 2): 8 cores, 16 threads, base 2.9 GHz, boost up to 4.2 GHz, 8 MB L3 cache

Graphics (GPU)

NVIDIA GeForce RTX 2060 with 6 GB GDDR6 (mobile variant with ~90 W TGP; lower than the 15″ 115 W version)

Memory (RAM)

16 GB DDR4‑3200 (2×8 GB), dual-channel, maximum supported 16 GB (some sources report up to 32 GB but Lenovo spec lists 16 GB max)

Storage

512 GB NVMe SSD (M.2 2242/2280)

Battery & Power

80 Wh 4‑cell battery, fast charging (~50% in ~30 min), Lenovo claims up to ~6.1 hours runtime

AC Adapter: ~230 W typical power supply

Design & Build

Dimensions: ~398.6 × 290 × 24.3–26.2 mm

Weight: ~2.98 kg (≈ 6.6 lbs)

Material: Polycarbonate ABS in Phantom Black finish

Numeric keypad, white backlit keyboard, non‑touchpad, dual-array mic, HD webcam with privacy shutter on most models

Ports & Connectivity

USB: 3 × USB 3.2 Gen 1 Type‑A (5 Gbps), 1 × USB 3.2 Gen 1 Type‑A “Always On”

USB‑C: 1 × USB‑C 3.2 Gen 1 (supports DP 1.2 Alt Mode)

HDMI 2.0, Gigabit Ethernet (RJ‑45), SD/MMC card reader, 3.5 mm combo jack

Wi‑Fi 6 (802.11ax) + Bluetooth 5.0, or older 802.11ac depending on region

Audio & Extras

Harman Kardon‑tuned stereo speakers, Dolby Atmos support

TPM 2.0 security chip, Kensington lock slot
