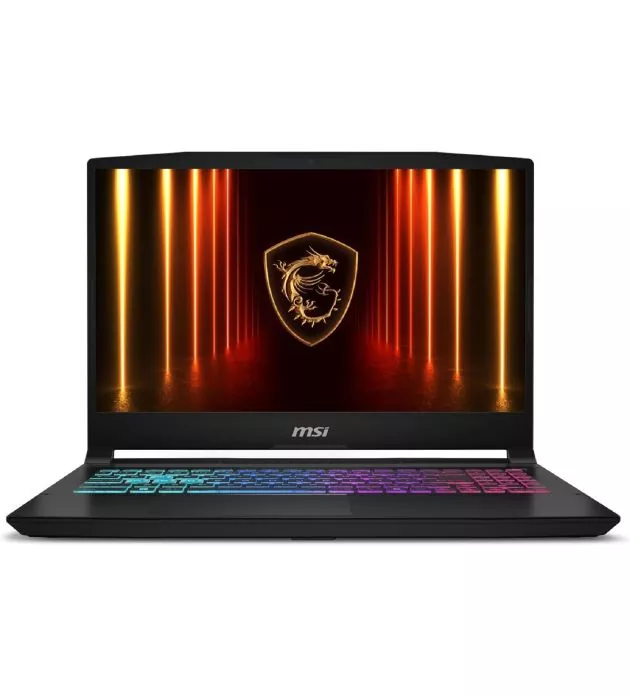

MSI Katana 15 HX Gaming Laptop - Core i7-14650HX, RTX 5060, 165Hz

Technical Specifications:

General

Brand / Model: MSI Katana 15 HX B14WFK-021AU

Type: Gaming Laptop

Color: Black

Operating System: Windows 11 Home

Warranty: 1 Year

Processor (CPU)

Intel Core i7-14650HX

Cores / Threads: 16 cores (8 Performance + 8 Efficiency), 24 threads

Base / Boost Clock: Up to ~5.2 GHz

Cache: 30 MB Intel Smart Cache

Architecture: 14th Gen HX-series

Display

Size: 15.6 inches

Resolution: QHD (2560 × 1440)

Panel Type: IPS-Level

Refresh Rate: 165 Hz

Color Gamut: 100% DCI-P3 (typical)

Aspect Ratio: 16:9

Graphics (GPU)

NVIDIA GeForce RTX 5060 Laptop GPU

VRAM: 8 GB GDDR7

Max Graphics Power: Up to ~115 W (with Dynamic Boost)

Ray Tracing & DLSS: Supported

Memory (RAM)

Installed: 16 GB DDR5-5600 (2 × 8 GB)

Slots: 2 × SO-DIMM

Maximum Supported: Up to 96 GB

Storage

Primary Storage: 512 GB NVMe PCIe Gen4 SSD

Expansion: 1 additional M.2 PCIe Gen4 slot

Keyboard & Input

Keyboard: 4-Zone RGB Backlit Gaming Keyboard

Special Keys: Highlighted WASD keys

Touchpad: Multi-touch precision touchpad

Audio & Camera

Speakers: 2 × 2 W speakers

Audio Enhancement: Nahimic Audio

Webcam: HD 720p (30 fps)

Microphone: Built-in dual mic

Connectivity

Wi-Fi: Wi-Fi 6E (802.11ax)

Bluetooth: Bluetooth 5.3

Ethernet: Gigabit LAN (RJ-45)

Ports

1 × USB-C (USB 3.2 Gen 2, DisplayPort, Power Delivery)

3 × USB-A (USB 3.2 Gen 2)

1 × HDMI 2.1 (supports up to 8K @ 60 Hz / 4K @ 120 Hz)

1 × 3.5 mm Audio Combo Jack

1 × RJ-45 LAN

Battery & Power

Battery: 4-Cell, 75 Wh

Power Adapter: 240 W AC Adapter

Cooling

Cooling System: MSI Cooler Boost technology with shared heat-pipe design

Dimensions & Weight

Dimensions: Approximately 359 × 262 × 25.5 mm

Weight: Approximately 2.4 kg

Security & Other

Security: Firmware TPM (fTPM)

Chipset: Intel HM770
